• Capacity: 1 NM3/hr to 1500 NM3/hr
  • Purity: Up to 99.9999%
  • Pressure: Up to 10-Bar (without Booster)
  • Dew Point: Up to (-) 80˚C

PSA Principle

This process consists of 2 beds filled with Carbon Molecular Sieves (CMS). When pre-filtered compressed air is passed through one CMS bed, Nitrogen comes out as the product gas. The waste gas (oxygen, carbon dioxide, etc.) is discharged back into atmosphere. Upon saturation of the CMS bed, the process switches nitrogen generation to the other bed, while allowing the saturated bed to undergo regeneration by depressurization to atmospheric pressure. This ensures continuous supply of Nitrogen to your process

Technology CarboTech AC GmbH (Germany)

This is Carbotech Carbon Molecular sieves (CMS) Technology to produce low cost Nitrogen from Air. Azote Eng. Company has long experience and know-how in Design and Manufacturing of such plants. Carbon Molecular sieves remove moisture and Oxygen from Air. So up to 95.999% purity dry Nitrogen gas is produced.

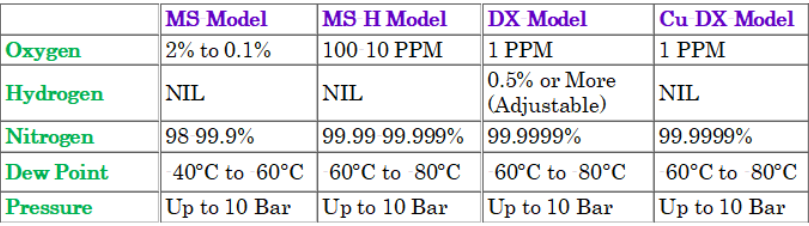

PSA Nitrogen Gas Plant Models

We offer the following models depending on the purity and balance gas content required for your process:

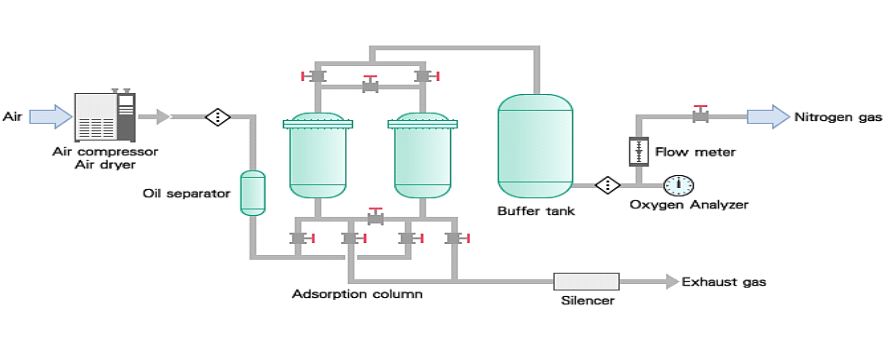

Process Diagram

Engineer Man

PSA - Pressure Swing Adsorption Process Description

The PSA process for nitrogen generation is divided into two phases. In the initial phase, the Carbon Molecular Sieve adsorbs oxygen from compressed air, which contains 79% nitrogen and 21% oxygen. During this stage, the pure nitrogen is withdrawn as product gas at the absorber outlet. In the second phase, the oxygen is released at low pressure - and the next cycle can start.

The interconnection of two absorber vessels, which are alternately charged with compressed air and de-pressurized, allows the quasi-continuous generation of high purity nitrogen.

  • Metallurgical Industry
  • Synthetic & Fiber Industry
  • Chemical Industries
  • Food Packaging Industry
  • Pharmaceutical Industry
  • Optical Fiber Industry
  • Electronic Industry
  • Refineries and chemical plants
  • Bear, wine and juices
  • Oil and gas platforms
  • Storage of fruits and vegetables
  • Metal-treatment
  • Tankers and storage tanks
  • Pipelines
  • Capacities up to 2000 NM3/hr.
  • No fuel is required
  • Purity up to 99.999% is easily achievable
  • Low Capital & running cost
  • Start up time of only 15 minutes

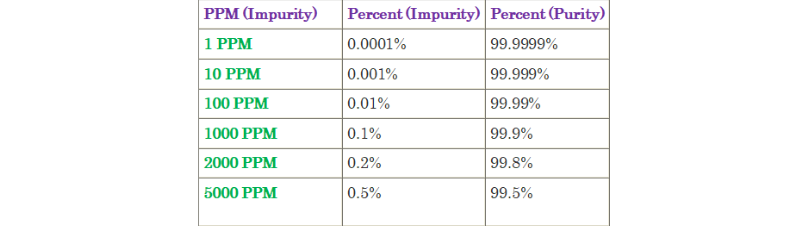

One of the most commonly asked question and confusing aspect of purity is when one talks about purity in terms of PPM level and another in Percent Level. So we have prepared a useful converter tool and also a printable chart for your use.
